SPECIFICATIONS

Battery Included: Yes

Battery capacity: 700 mAh
Brand Name: Dodosee
Connection mode: built-in WiFi
Drawtube: Monocular
Features: High Definition,Handheld,Portable,Digital
Focal length range: 20-60mm
Is Smart Device: No
Lens light source: 8 LEDs Brightness adjustable
Lens pixel: 2 million
Magnification Ratio: 500X - 1500X
Material: Plastic
Model Number: XP1-3
Origin: Mainland China
Photo function: support (JPG)
Support: TF Card(Purchased separately)
Supported devices: PC
Theory: Video Microscope
Usage issues: Please read the Q&A on the details page
Video function: support (MP4)

2.4 Inch Digital Microscope 1600X 1080P HD 8 Lights Handheld Microscopes Supports Photo Video Magnifier Tools for Coin

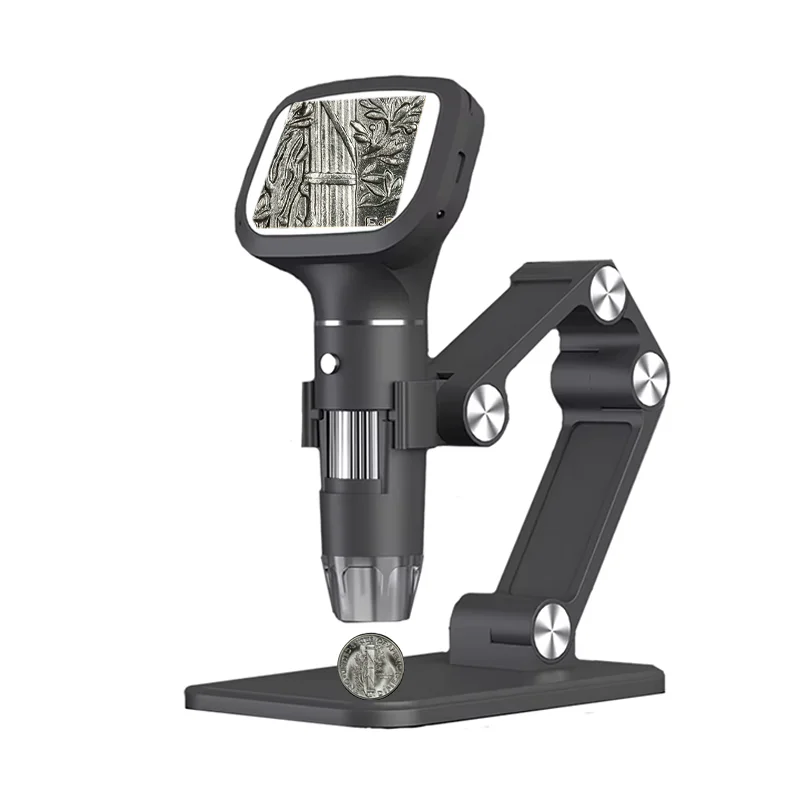

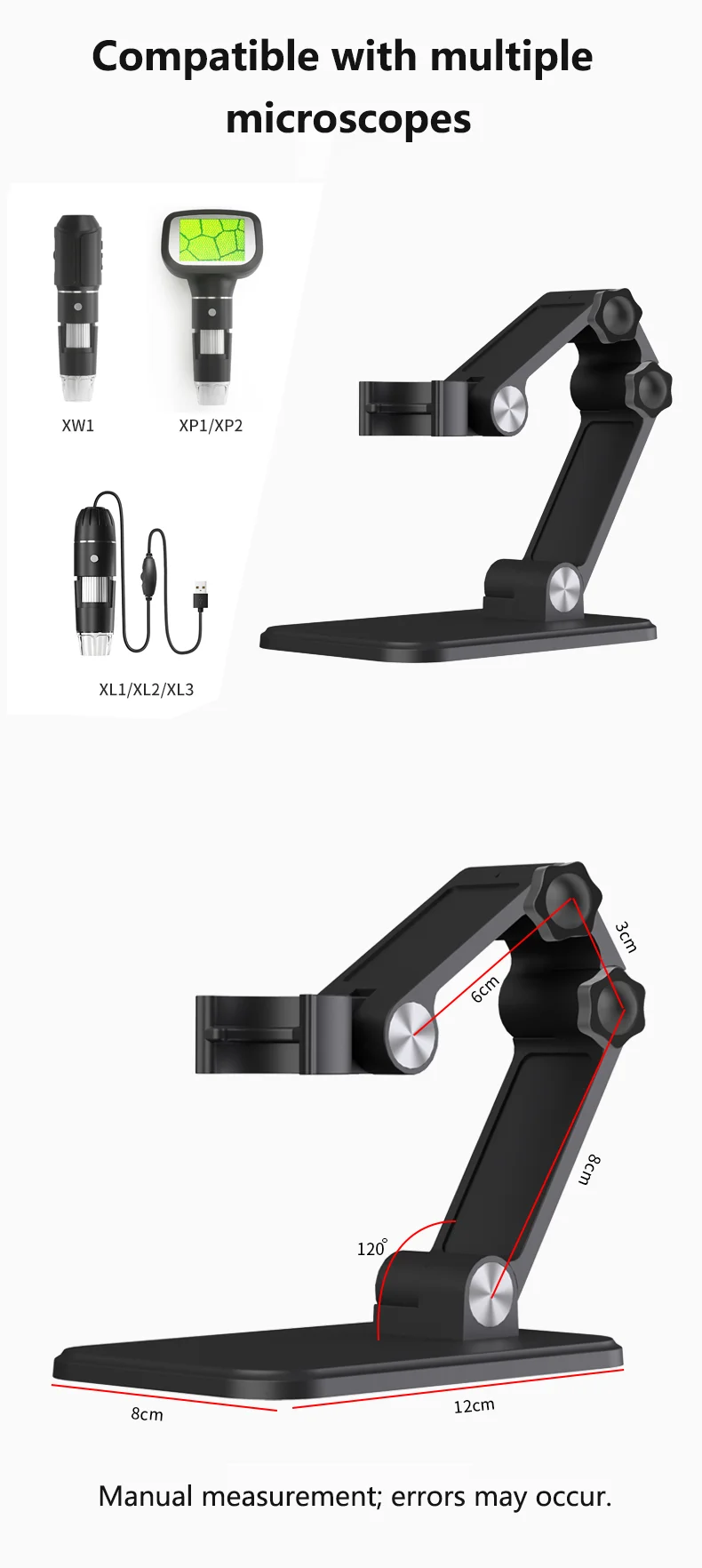

How to Use the Four-Axis Mount
https://youtu.be/mfINtaiUL6Q?si=ypV9hwRpSd_hhtOf

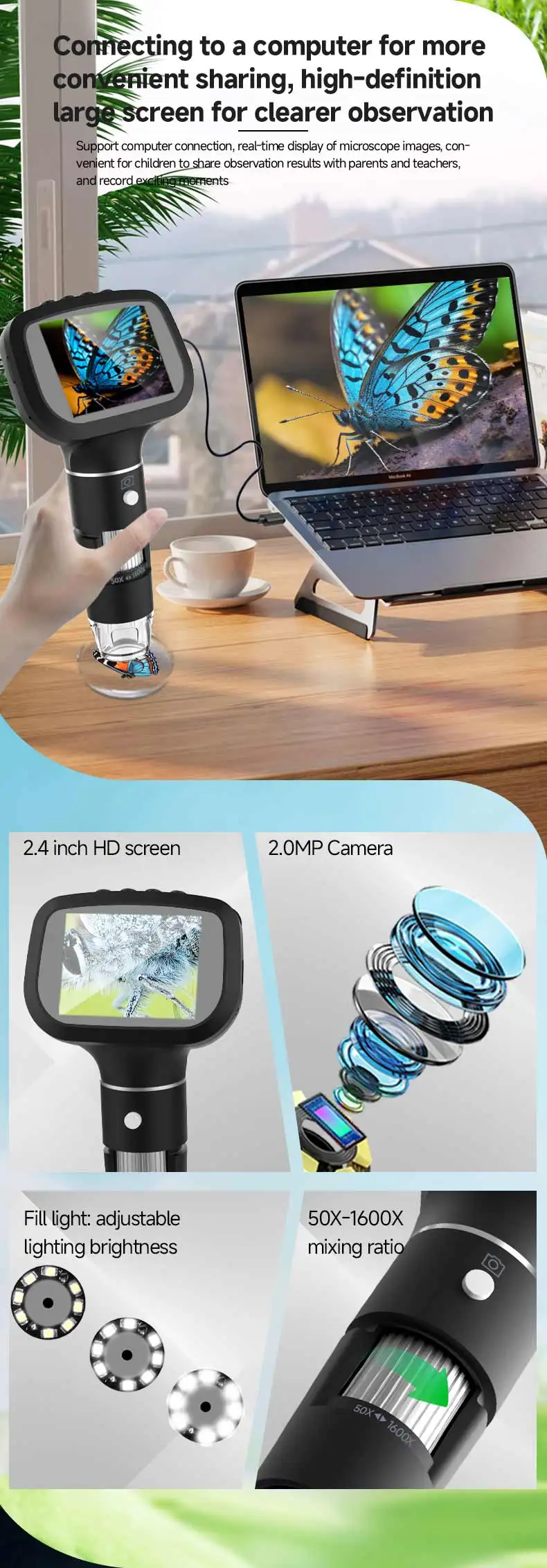

How to Connect the XP1 to a Computer
https://video.aliexpress-media.com/seller/play/5000474132110.mp4

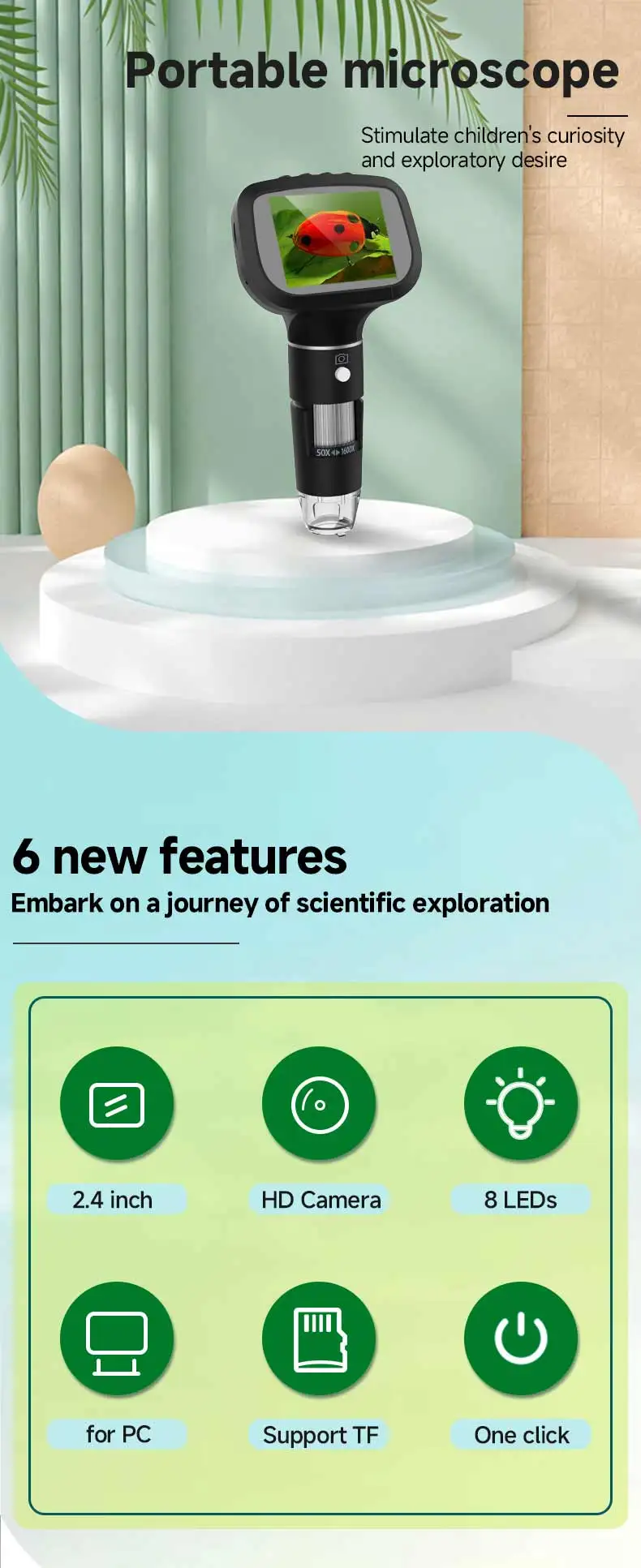

Product Features

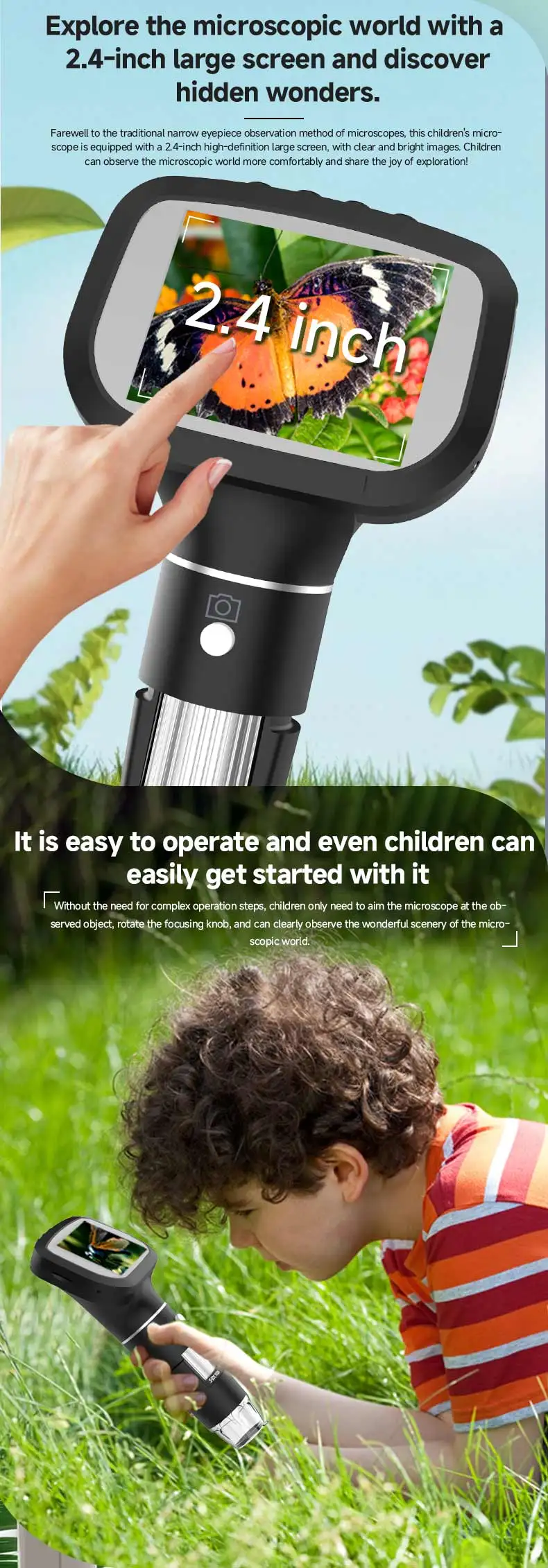

【Simple and Convenient to Use】Features a 2.4-inch color screen for instant operation and simplified usage.

【Supports Photos and Videos】Previous versions only allowed photo and video capture via computer connection. The new version supports TF card insertion, enabling direct photo and video recording on the microscope. Without an inserted TF card, only photo capture is supported.

【8 Adjustable LED Lights】Equipped with 8 high-brightness LEDs featuring linear brightness adjustment for enhanced flexibility.

【50-1600X Magnification Range】Delivers superior magnification, revealing finer details with greater clarity.

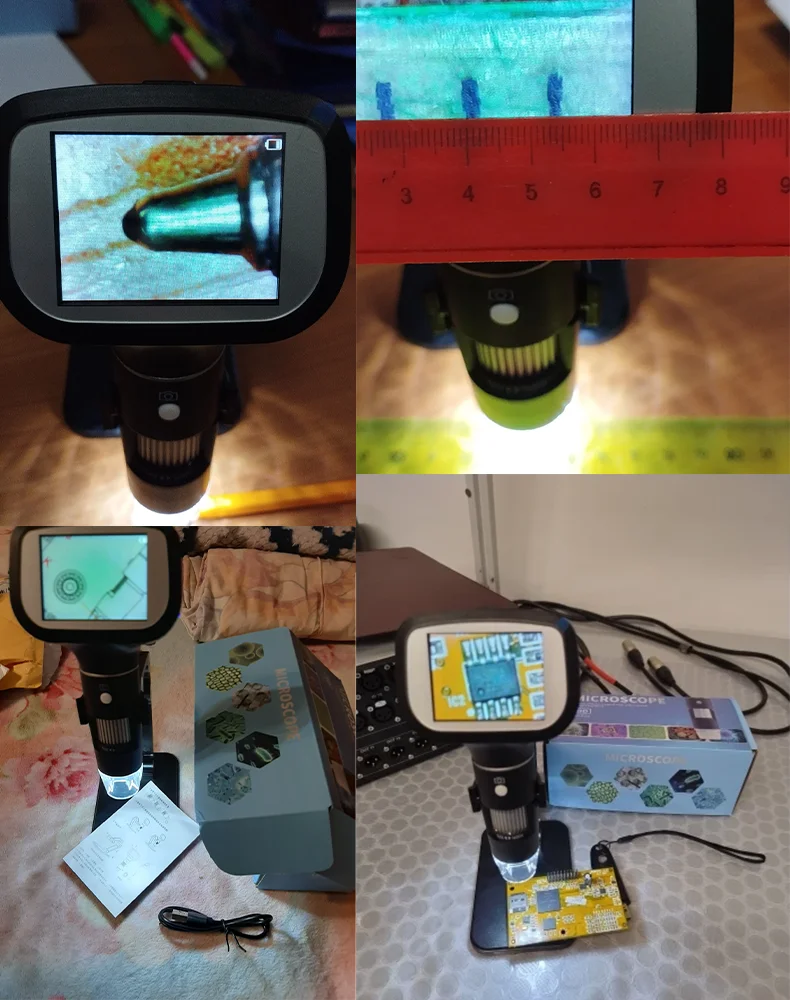

Costomer Show

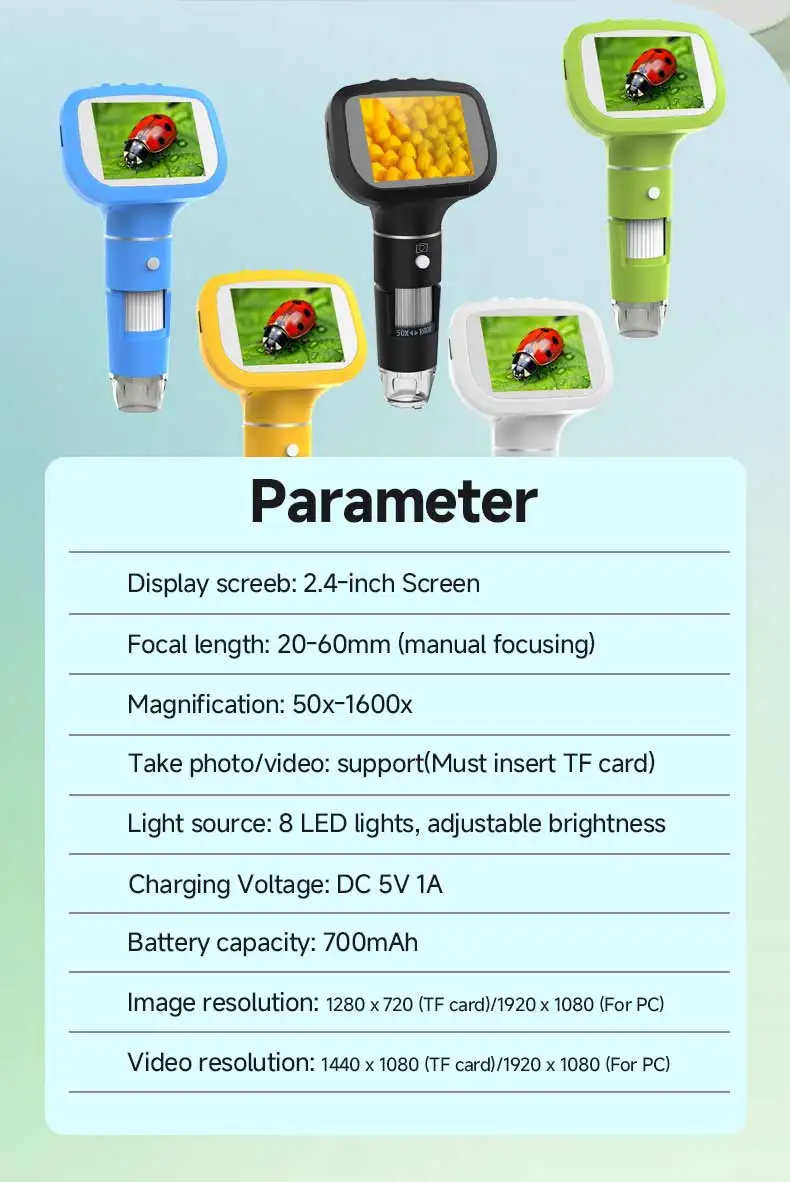

New Version Specification

Display: 2.4-inch color screen
Focus range: 20-60mm (manual adjustment)
Photo and Video: Supports Microscope and PC
TF Card Expansion: Supports 4/8/16/32GB (Requires separate purchase)
Photo/Video Function: Supported (Press the body photo button)
Lens Lighting: 8 LED lights with adjustable brightness
Battery Capacity: 700mAh
Magnification Range: 50X-1600X
Microscope (without stand): Length 160mm x Width 82.2mm

Image Resolution: 1280*720 (TF Card Mode)
640*480/800*600/1280*720/1280*960/1920*1080 (PC Mode, using Seepc or ViewplayCap)
Video Resolution: 1440*1080 (TF Card Mode)
640*480/800*600/1280*720/1280*960/1920*1080 (PC Mode, using Seepc or ViewplayCap)

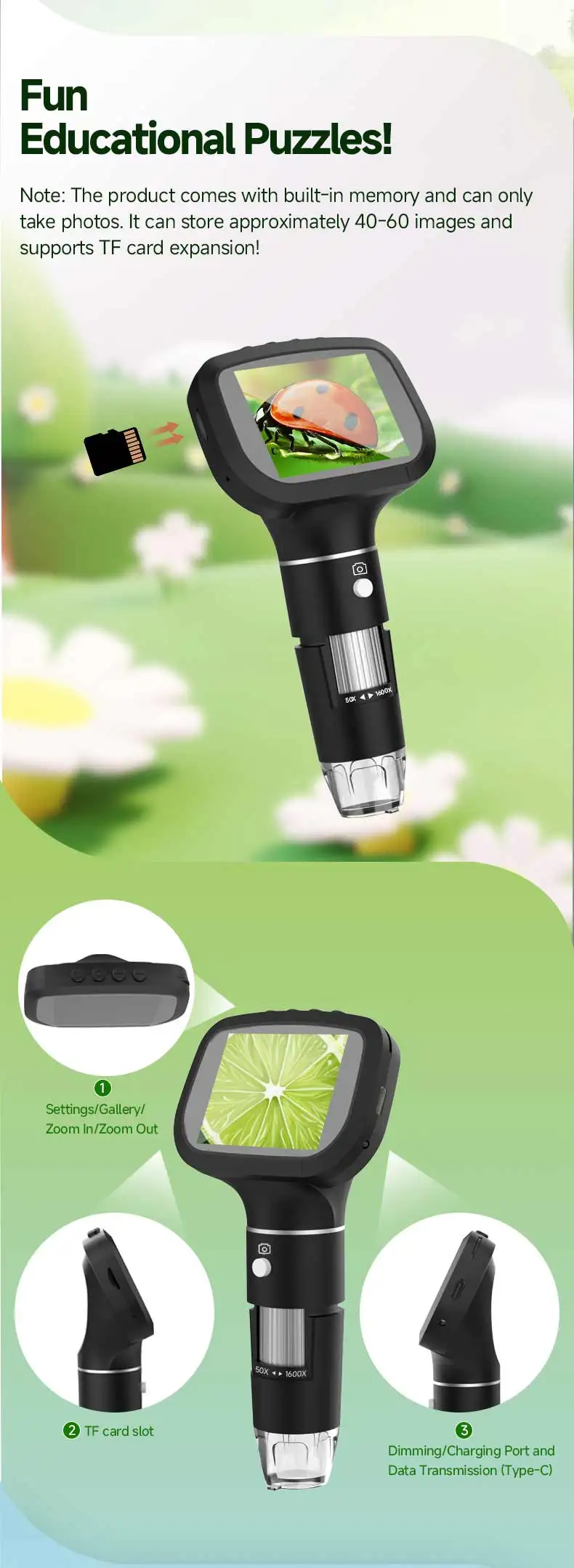

Note: Without a TF card inserted, the built-in memory can store approximately 40-60 images and video recording is not supported. Images can only be viewed and deleted on the device and cannot be exported to a computer.

Old Version Specification

Display: 2.4-inch color screen
Focus range: 20-60mm (manual adjustment)
Pixel: 2MP
Resolution: 1920*1080(for PC)
Light Source: 8LEDs with adjustable brightness
Photo and Video: Supports PC only
Battery Capacity: 700mAh
Magnification Range: 50X-1600X
Support OS: WindowsXP/7/8/10/11,Mac OS

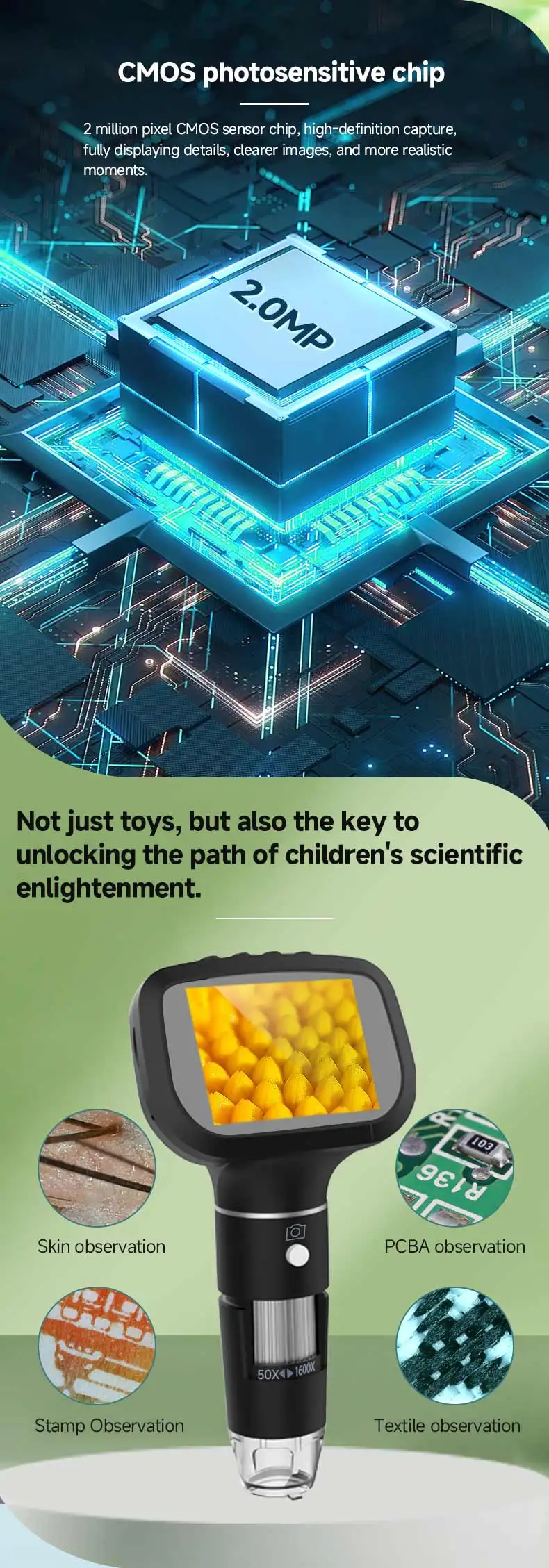

Application Areas: Skin and hair observation/electronic repair testing/insect observation, etc.

Shipping list:

Microscope *1
Stand *1
Instruction manual *1
Colour box *1
Charging cable *1

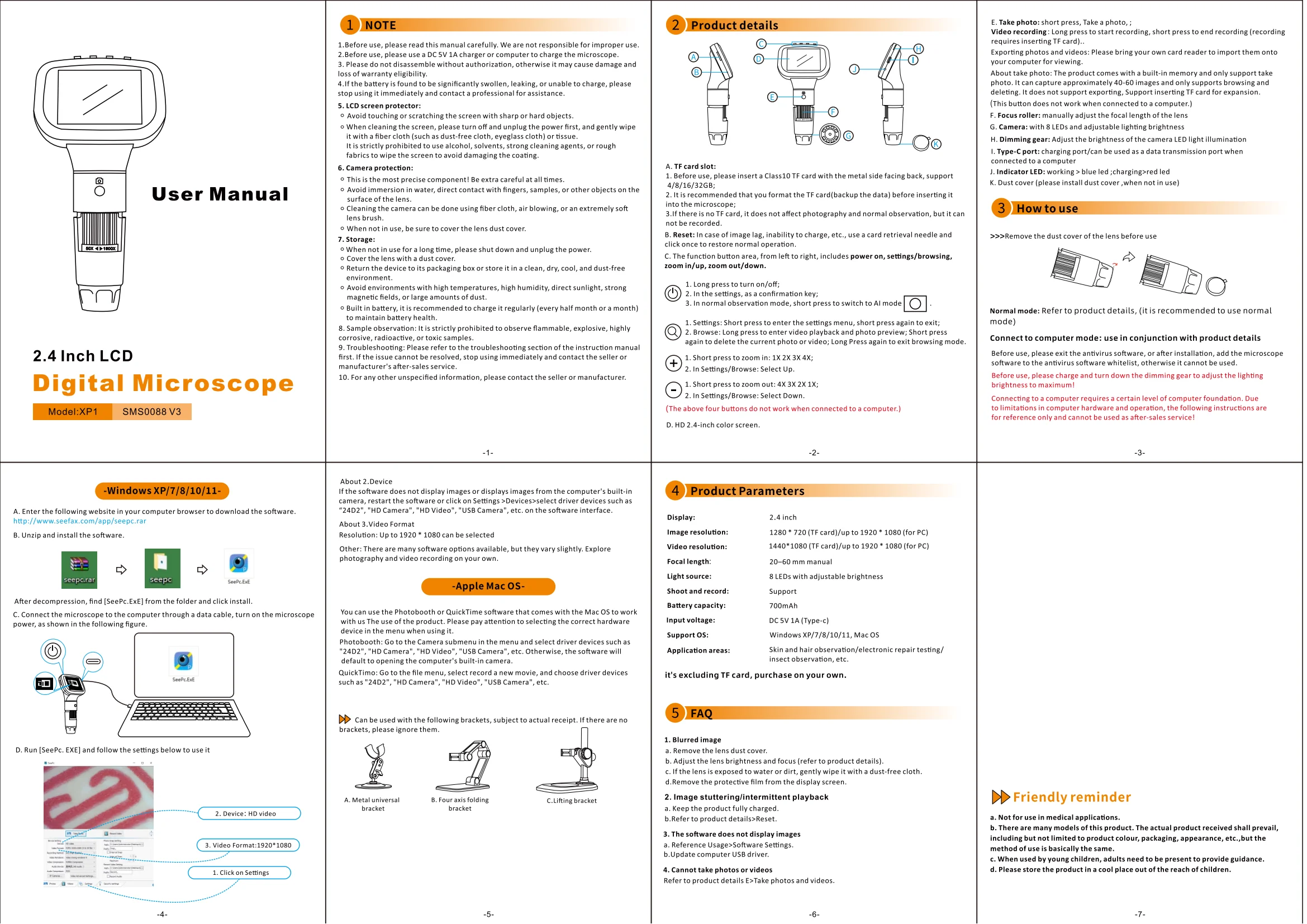

New Version Manual
